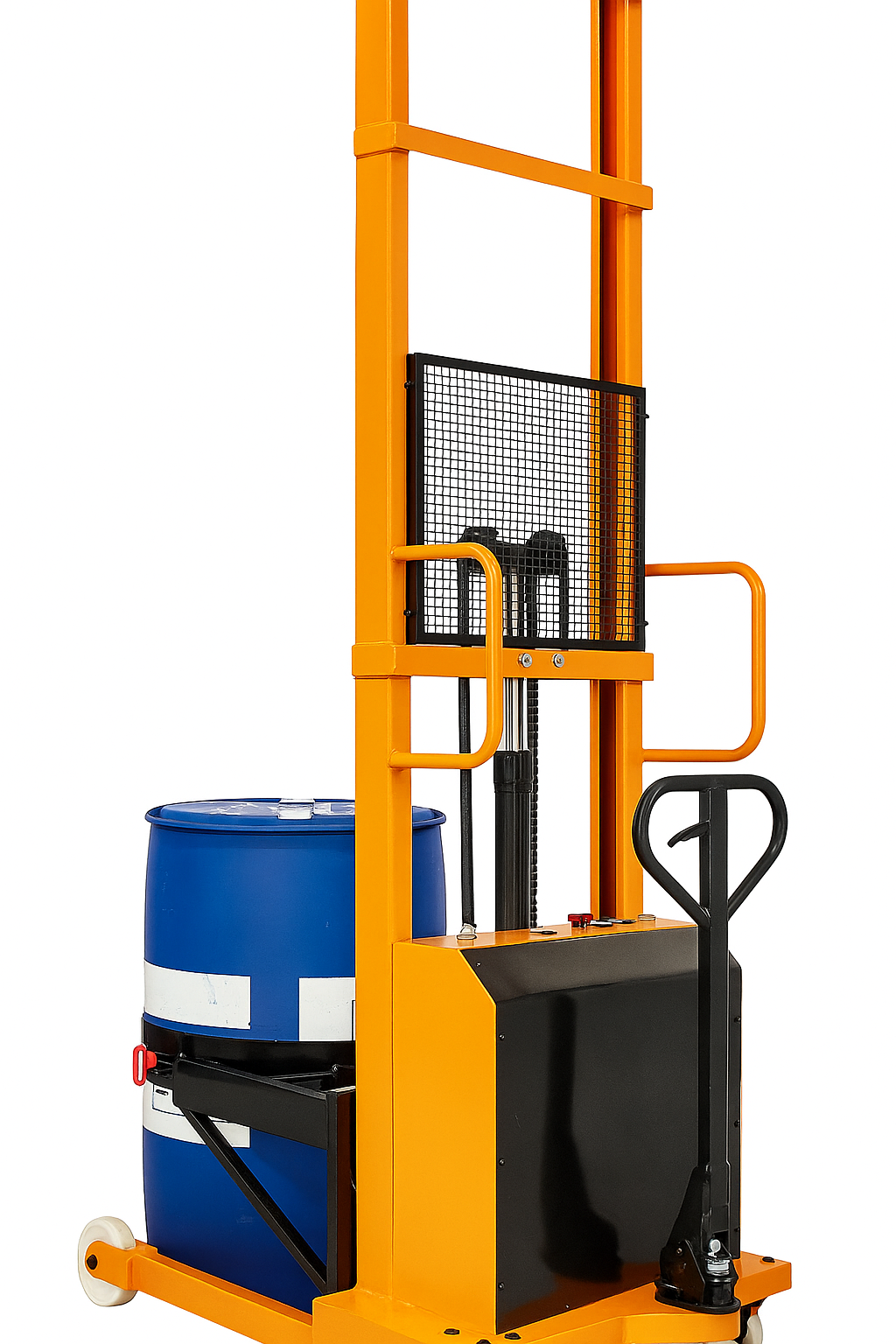

Semi Electric Drum Stacker - 0.35T Capacity BIL MHE
Efficient and Reliable Drum Handling Solution with 350kg Capacity and Battery-Powered Hydraulic Operation
₹200000.00₹129999.00
Discover the BIL MHE Semi Electric Drum Stacker, model MHE-SEDS-0.35T, designed for efficient drum handling. With a lifting capacity of 350kg and a height of 1600mm, this stacker is ideal for standard 215L plastic and MS drums (dimensions: Dia 350mm, height 630mm). Powered by a 12V 130AH Exide battery and equipped with a 1.6kW DC power pack, it ensures smooth hydraulic operation. Features include controllable lowering speed, manual push/pull movement, durable nylon wheels, and high-quality electrical components like Schneider push buttons and emergency stop. Perfect for industrial use, this stacker offers reliability and precision. Delivery within 30-35 days.
Specifications Table:
Specification | Details |
|---|---|
Model | BIL-SEDS-0.35T |
Make | BIL MHE |
Capacity (kg) | 350kg |
Capacity at Max Height | 350kg |
Lifting Height | 1600mm (Ground to drum center) |
Standard Drum Capacity | 215 Ltr |
Drum Dimensions | Dia: 350mm, Height: 630mm |
Lifting Type | Battery Operated |
Lowering Speed | Controllable |
Front Wheel Size (mm) | Φ150x50 (Nylon type) |
Rear Wheel Size (mm) | Φ180x50 (Nylon type) |
Up & Down Operation | Battery Operated |
Movement | Manual Push and Pull |
Self-Weight (kg) | 260-270kg |
Power Pack | 1.6kW DC |
Battery | 12V 130AH (Exide make) |
Charger | 12V 20A |
Closed Height (mm) | 2100mm |
Electrical Components:
Push Buttons, Limit Switches: Schneider or Jai Balaji make
Wires and Cables: Finolex or LAPP
Solenoid Coil: Torque make
Emergency Stop: Schneider make
Hydraulic Power Pack and Cylinder:
Electric Motor: 1.6kW, DC 12V (Torque make)
Relief Valve: Torque make
Flow Control Valve: Torque make
Pump: Torque make
Hydraulic Hose: High Pressure - 330Bar (Parker)
Hydraulic Cylinders: Bhavana or Sparkle
